Outdoor LED Display Screen 1280x960mm Cabinet For Indoor Use In Shopping Malls And Retail Stores With SDK Function

Conwin Optoelectronic Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Outdoor LED Display Screen 1280x960mm Cabinet For Indoor Use In Shopping Malls And Retail Stores With SDK Function

Brand Name : CONWIN

Model Number : T5

Certification : CE,ROHS

Place of Origin : China

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000sqm/month

Delivery Time : 5-8 working days

Packaging Details : wooden box or carton

Pixel Pitch : 5MM

Control System : Synchronous/Asynchronous

Maintenance : Rear/Front

Cabinet size : 1280x960mm

Mtbf : 10,000hrs

Maintenance Way : Front/Rear

Ingress Protection : Front:IP 67; Back:IP65

Led Lamp : SMD3535

Contact Now

Specifications
Model number
P4
P5
P8
P10
Module size
320*160 mm
320*160 mm
320*160 mm
320*160 mm
Pixel ptich
4mm
5mm
8mm
10mm
Pixels Density
62500 dots/m²
40000 dots/m²
15625 dots/m²
10000 dots/m²
Pixel configuration
1R1G1B
1R1G1B
1R1G1B
1R1G1B
Packing mode
SMD1515
SMD2121
SMD2121
SMD353
Pixel resolution
80dots(W)*40 dots(H)
64dots(W)*32 dots(H)
40dots(W)*29 dots(H)
32dots(W)*16 dots(H)
Drive type
IC : 2037
IC : 2037
IC :2037
IC :2037
Refresh frequency
≥1920/7680HZ
≥1920/7680HZ
≥1920/7680HZ
≥1920/7680HZ
Scan mode
1/10 scan
1/8 scan
1/5 scan
1/4 scan
Port type
HUB75
HUB75
HUB75
Brightness of white balance
≥5500-6500cd/m²
5500-6500cd/m²
5500-6500cd/m²
5500-6500cd/m²
Products Description

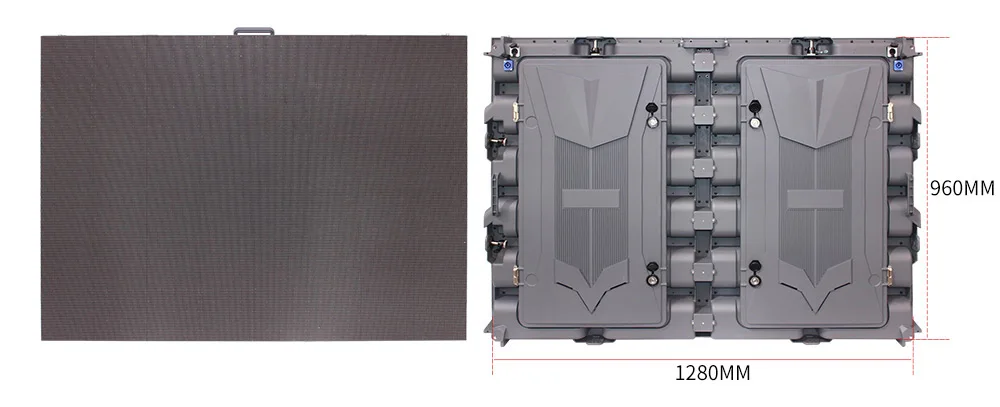

1280mm X 960mm Standard Display Cabinet
Outdoor LED Display Screen 1280x960mm Cabinet For Indoor Use In Shopping Malls And Retail Stores With SDK Function

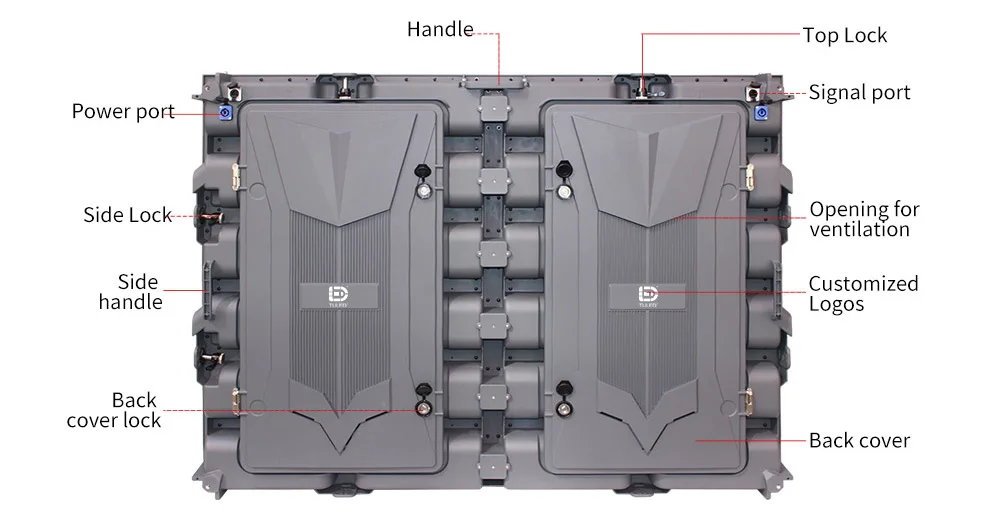

Product Decomposition Description
Outdoor LED Display Screen 1280x960mm Cabinet For Indoor Use In Shopping Malls And Retail Stores With SDK Function
Products features

1. High Brightness

  • Optimal Visibility: Designed to deliver high brightness levels, ensuring clear visibility even in direct sunlight. Typical brightness levels range from 5,000 to 10,000 nits.
  • Adaptive Brightness Control: Equipped with sensors to automatically adjust brightness based on ambient light conditions, enhancing visibility and energy efficiency.

2. Weatherproof Design

  • IP65/66 Rating: Built to withstand harsh weather conditions with a high Ingress Protection (IP) rating, ensuring protection against dust and water.
  • Durable Construction: Features robust and corrosion-resistant materials to endure extreme temperatures, rain, snow, and wind.

3. High Resolution and Image Quality

  • Pixel Pitch Options: Available in various pixel pitches (e.g.P3, P4, P5, P6,P10) to provide sharp and clear images at different viewing distances.
  • Vivid Colors: Delivers vibrant and consistent colors with a wide color gamut and high contrast ratio, enhancing the visual impact.

4. Wide Viewing Angle

  • Enhanced Visibility: Offers wide horizontal and vertical viewing angles (typically 140-160 degrees) to ensure a clear view from multiple perspectives without color distortion.

5. Energy Efficiency

  • Low Power Consumption: Utilizes energy-efficient LEDs and power management technologies to reduce overall energy consumption and operational costs.
  • Eco-Friendly: Designed with environmentally friendly components that comply with global standards.

6. Easy Installation and Maintenance

  • Modular Design: Features a modular structure for quick and easy installation, as well as straightforward maintenance and replacement of individual modules.
  • Front/Rear Access: Provides both front and rear access options for convenient maintenance and servicing.

    1. High Brightness

  • Optimal Visibility: Designed to deliver high brightness levels, ensuring clear visibility even in direct sunlight. Typical brightness levels range from 5,000 to 10,000 nits.
  • Adaptive Brightness Control: Equipped with sensors to automatically adjust brightness based on ambient light conditions, enhancing visibility and energy efficiency.
  • 2. Weatherproof Design

  • IP65/66 Rating: Built to withstand harsh weather conditions with a high Ingress Protection (IP) rating, ensuring protection against dust and water.
  • Durable Construction: Features robust and corrosion-resistant materials to endure extreme temperatures, rain, snow, and wind.
  • 3. High Resolution and Image Quality

  • Pixel Pitch Options: Available in various pixel pitches (e.g.P3, P4, P5, P6,P10) to provide sharp and clear images at different viewing distances.
  • Vivid Colors: Delivers vibrant and consistent colors with a wide color gamut and high contrast ratio, enhancing the visual impact.
  • 4. Wide Viewing Angle

  • Enhanced Visibility: Offers wide horizontal and vertical viewing angles (typically 140-160 degrees) to ensure a clear view from multiple perspectives without color distortion.
  • 5. Energy Efficiency

  • Low Power Consumption: Utilizes energy-efficient LEDs and power management technologies to reduce overall energy consumption and operational costs.
  • Eco-Friendly: Designed with environmentally friendly components that comply with global standards.
  • 6. Easy Installation and Maintenance

  • Modular Design: Features a modular structure for quick and easy installation, as well as straightforward maintenance and replacement of individual modules.
  • Front/Rear Access: Provides both front and rear access options for convenient maintenance and servicing.
Suitable for 320x160mm standard size modules
Supports standard-sized panels: Changing the pixel pitch is also very easy, just replace the modules as they have the same dimensions and screw positions.
Outdoor LED Display Screen 1280x960mm Cabinet For Indoor Use In Shopping Malls And Retail Stores With SDK Function

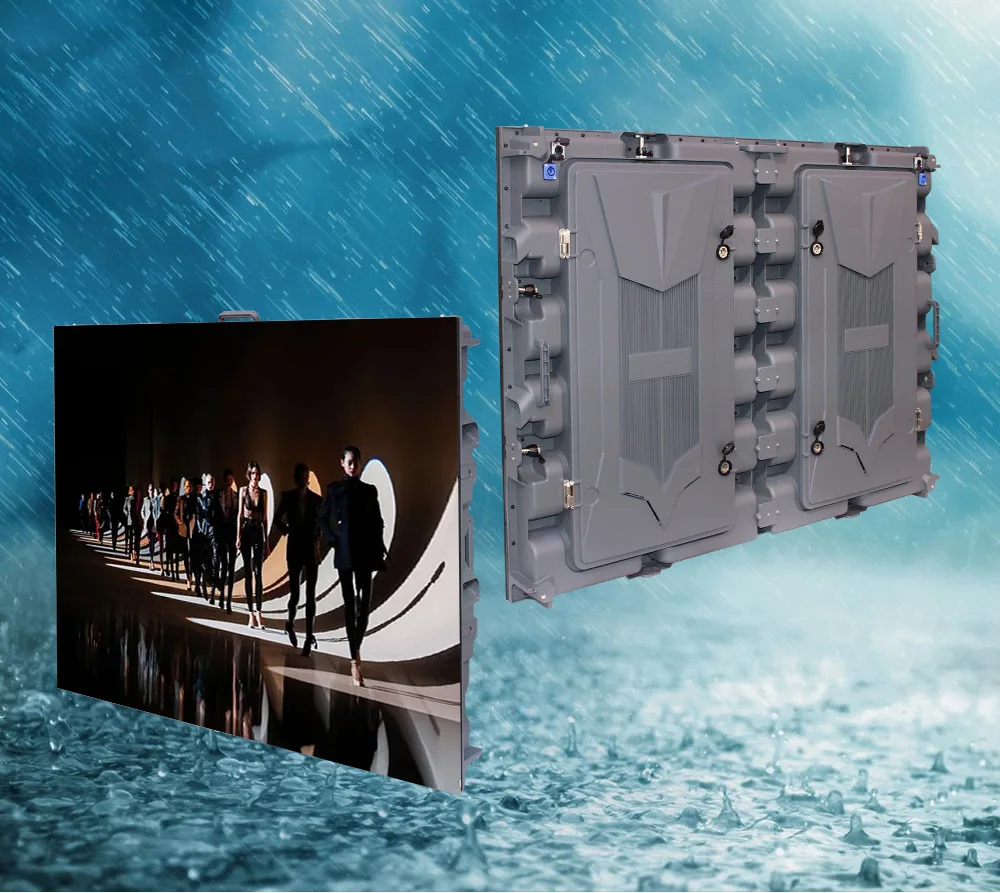

IP65 Waterproof
IP65 waterproof protaction on the front side ensures continuous and stable operation in all kinds of outdoor environments
Outdoor LED Display Screen 1280x960mm Cabinet For Indoor Use In Shopping Malls And Retail Stores With SDK Function

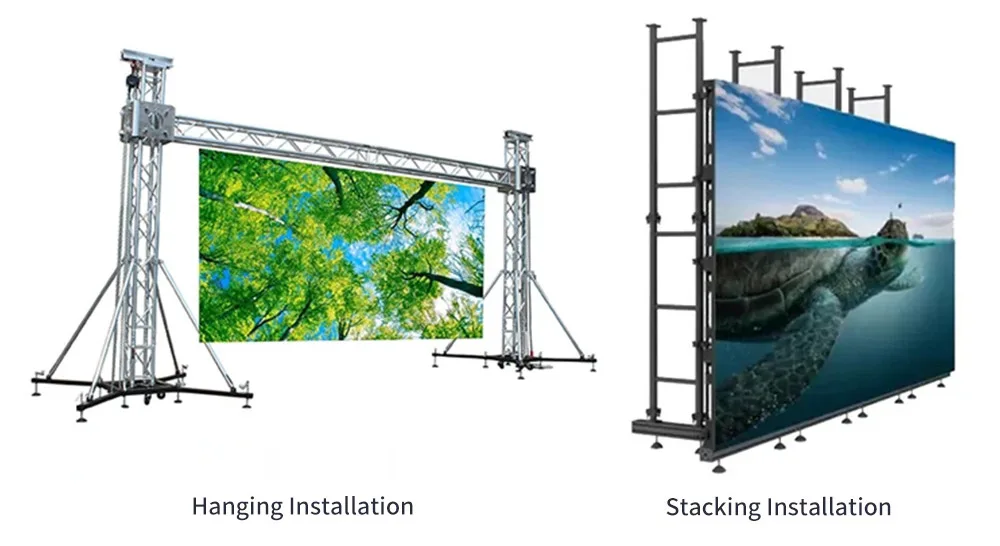

Multi Installation Way of Cabinet
Support fixed installation for advertisement, adding flying bar, connectiors and fast lock for rental installation,adding rubber sushion and bracket for perimeter installation LED display
Outdoor LED Display Screen 1280x960mm Cabinet For Indoor Use In Shopping Malls And Retail Stores With SDK Function
High gray scale, high brightness
High-brush IC (ICN2153, MBI5153 etc) the screen work without water ripple, no flicker
Outdoor LED Display Screen 1280x960mm Cabinet For Indoor Use In Shopping Malls And Retail Stores With SDK Function
High refresh
Outdoor LED Display Screen 1280x960mm Cabinet For Indoor Use In Shopping Malls And Retail Stores With SDK Function
High refresh
Outdoor LED Display Screen 1280x960mm Cabinet For Indoor Use In Shopping Malls And Retail Stores With SDK Function
Blur
Outdoor LED Display Screen 1280x960mm Cabinet For Indoor Use In Shopping Malls And Retail Stores With SDK Function
Ultra HD
