P2.5 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960*960mm

Product Categories

HD LED Display [72]
Outdoor Advertising LED Display [45]
Outdoor Rental LED Display [91]
Indoor Rental LED Display [58]
Outdoor LED Billboard [18]
Indoor LED Video Wall [22]
Stadium LED Screen [11]
Transparent LED Display Screen [21]
LED Mesh Screen [6]
Flexible LED Screen Display [7]
Outdoor LED Signs [12]
Outdoor LED Strip Light [7]
Creative LED Display Screen [35]

Conwin Optoelectronic Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

P2.5 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960*960mm

Name: P25 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960960mm
Brand: CONWIN
Price: 1 USD

Quality P2.5 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960*960mm for sale

Brand Name : CONWIN

Model Number : E2.5

Certification : CE,ROHS

Place of Origin : China

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000sqm/month

Delivery Time : 5-8 working days

Packaging Details : wooden box or carton

Pixel Configuaration : 1R1G1B

Screen Dimension : Customized

Average Life Span : 100,000 hours under proper use

Control System : Asynchronous/Synchronous

Driving Method : 1/10 Scan, Constant current

Led Drive : Constant-current

Service Method : Rear service

Drive Duty : 1/8scan

Cabinet Size : 960mmx960mm

Size : Customizable

Contact Now

Why Choose CONWIN LED?

1.Our factory has been focusing on Led display screen manufacturing for more than 15years,which could provide you with the most affordable price and guarantee high quality one.
2.Service:We always offer the most clear and flexible solution through professional reply to our customers.
3.Nice quality:Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Besides, we will do an aging test for at least 72 hours before shipment.
4.Installation guidance:We will offer you the CAD drawing to guide you for installation.After you receive the goods,there is a professional engineer team to help you operate the control system of our Led display screen.
5. Customized service:We do OEM&ODM in all kinds of led display screen designs to meet your varied requirements.

Products Description

Pixel Pitch		2.5mm	3.07mm	4mm	5mm
LED Configuration		SMD1415	SMD1921	SMD1921	SMD1921
Application		Outdoor	Outdoor	Outdoor	Outdoor
Pixel Density/sqm		160000dots	105625 dots	62500 dots	40000 dots
Module Size/mm		320 x 160	320 x 160	320 x 160	320 x 160
Module Resolution		128x 64 dots	104x 52 dots	80 x 40 dots	64 x 32 dots
Cabinet Size		960x960mm	960x960mm	960x960mm	960x960mm
Cabinet Resolution		384 x 384 dots	312x312dots	240x240dots	192x192dots
Cabinet Weight		26Kg	26Kg	26Kg	26Kg
IP Rating		IP65	IP65	IP65	IP65
Scan		1/16S	1/13S	1/8S	1/8S
Brightness /sqm		4500-5000 nits	4500-5000 nits	4500-5000 nits	4500-5000 nits
View Angle/°		160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)
Gray Scale/bit		16 bit	16 bit	16 bit	16 bit
Max. Power Consumption/W		640 W/sqm	640 W/sqm	640 W/sqm	640 W/sqm
Ave. Power Consumption/W		192 W/sqm	192 W/sqm	192 W/sqm	192 W/sqm
Refresh Frequency/Hz		3840 Hz	3840 Hz	3840 Hz	3840 Hz
Operating Power	AC 96~242V 50/60Hz
Operating Temperature	-40℃~+60℃
Operating Humidity	10~90%RH
Operating Life	100,000Hours

Pixel Pitch		6.67mm	8mm	10mm
LED Configuration		SMD1415	SMD1921	SMD1921
Application		Outdoor	Outdoor	Outdoor
Pixel Density/sqm		160000dots	105625 dots	62500 dots
Module Size/mm		320 x 160	320 x 160	320 x 160
Module Resolution		128x 64 dots	104x 52 dots	80 x 40 dots
Cabinet Size		960x960mm	960x960mm	960x960mm
Cabinet Resolution		384 x 384 dots	312x312dots	240x240dots
Cabinet Weight		26Kg	26Kg	26Kg
IP Rating		IP65	IP65	IP65
Scan		1/16S	1/13S	1/8S
Brightness /sqm		4500-5000 nits	4500-5000 nits	4500-5000 nits
View Angle/°		160°/ 140°(H/V)	160°/ 140°(H/V)	160°/ 140°(H/V)
Gray Scale/bit		16 bit	16 bit	16 bit
Max. Power Consumption/W		640 W/sqm	640 W/sqm	640 W/sqm
Ave. Power Consumption/W		192 W/sqm	192 W/sqm	192 W/sqm
Refresh Frequency/Hz		3840 Hz	3840 Hz	3840 Hz
Operating Power	AC 96~242V 50/60Hz
Operating Temperature	-40℃~+60℃
Operating Humidity	10~90%RH
Operating Life	100,000Hours

LED Cabinet Specification

P2.5 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960*960mm

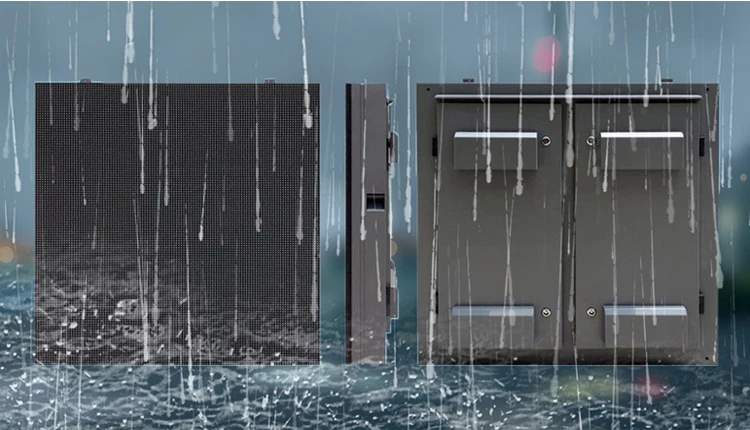

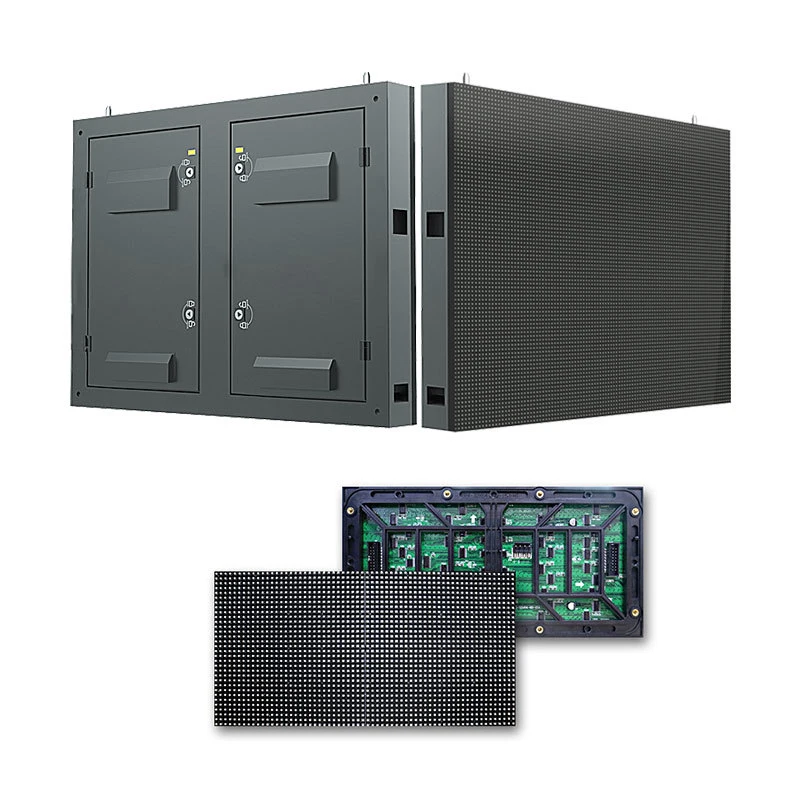

Details Images
